Herrmidifier Herrtronic ADM Series Steam Humidifier

Search Results for

    Select a diagram to view its parts

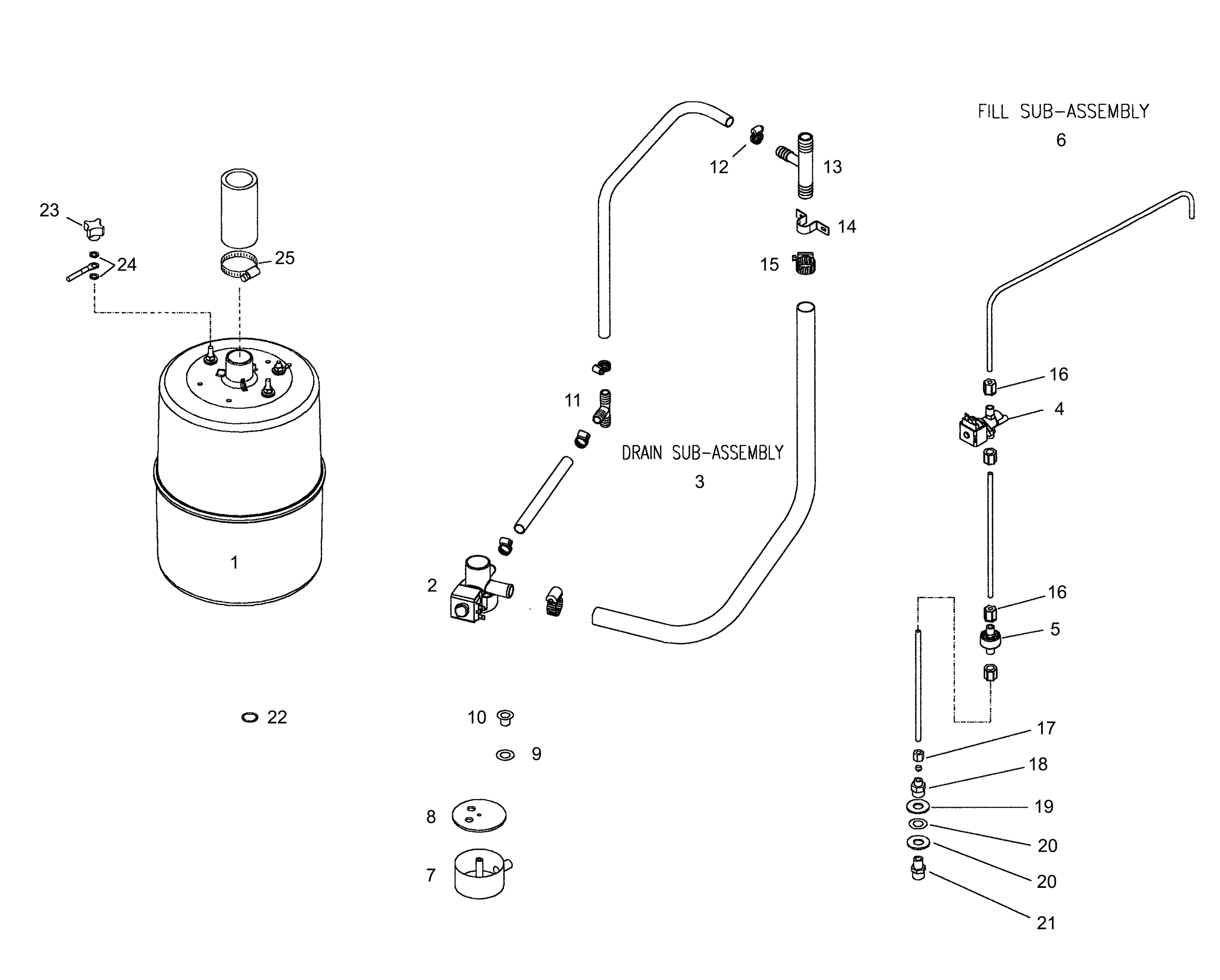

    Plumbing

    Diagram

    Plumbing
    1
    2
    3
    4
    5
    6
    7
    8
    9
    10
    11
    12
    13
    14
    15
    16
    16
    17
    18
    19
    20
    20
    21
    22
    23
    24
    25

    Plumbing

    1. 1
      Steam Cylinder Assembly
      Steam Cylinder Assembly
      SKU: TRNEST4162
      $1,188.00
    2. 1
      Steam Cylinder Assembly
      Steam Cylinder Assembly
      SKU: TRNEST4163
      $1,188.00
    3. 2
      Solenoid Valve Kit
      Solenoid Valve Kit
      SKU: TRNEST1092
      $360.30
    4. 3
      Drain Sub Assembly
      Drain Sub Assembly
      SKU: TRNEST1262
    5. 4
      Fill Valve
      Fill Valve
      SKU: TRNGT118
      $152.61
    6. 5
      Strainer
      Strainer
      SKU: TRNGT153
      $162.36
    7. 6
      Fill Sub Assembly
      Fill Sub Assembly
      SKU: TRN354415003
      $630.00
    8. 7
      Drain Reservoir
      Drain Reservoir
      SKU: TRNEST1525
    9. 8
      Drain Reservoir Gasket
      Drain Reservoir Gasket
      SKU: TRNEST1526
    10. 9
      Stainless Steel Retaining Ring
      $0.67
    11. 10
      Brass Cabinet Drain Eyelet
      $2.40
    12. 11
      Drain Tee
      Drain Tee
      SKU: TRNEST1012
      $13.82
    13. 12
      Hose Clamp
      Hose Clamp
      SKU: TRN1095
      $7.25
    14. 13
      Fill Tee
      Fill Tee
      SKU: TRNGT120
      $19.80
    15. 14
      Hose Clamp
      Hose Clamp
      SKU: TRN154741001
    16. 15
      Clamp
      Clamp
      SKU: TRNEST207
      $7.20
    17. 16
      Celcon Compression Nuts
      Celcon Compression Nuts
      SKU: TRNGT116
      $5.36
    18. 17
      Brass Compression Nut
      $3.31
    19. 18
      Female Connector
      Female Connector
      SKU: TRNEST1058
      $17.08
    20. 19
      Rubber Washer
      Rubber Washer
      SKU: TRNAH13
      $11.02
    21. 20
      Brass Washer
      Brass Washer
      SKU: TRNEST189
      $9.00
    22. 21
      Brass Adt
      Brass Adt
      SKU: TRNEST152
      $14.58
    23. 22
      O-Ring
      O-Ring
      SKU: TRNEST10603
      $3.71
    24. 23
      Electrode Knob
      Electrode Knob
      SKU: TRNEST1080
      $8.60
    25. 24
      Lock Washer
      Lock Washer
      SKU: TRNEST076
    26. 25
      Stainless Steel Steam Hose Clamp
      $14.40

    Plumbing Not In Diagram

    1. Not Shown
      Steam Hose
      Steam Hose
      SKU: TRNEST171
      $30.24

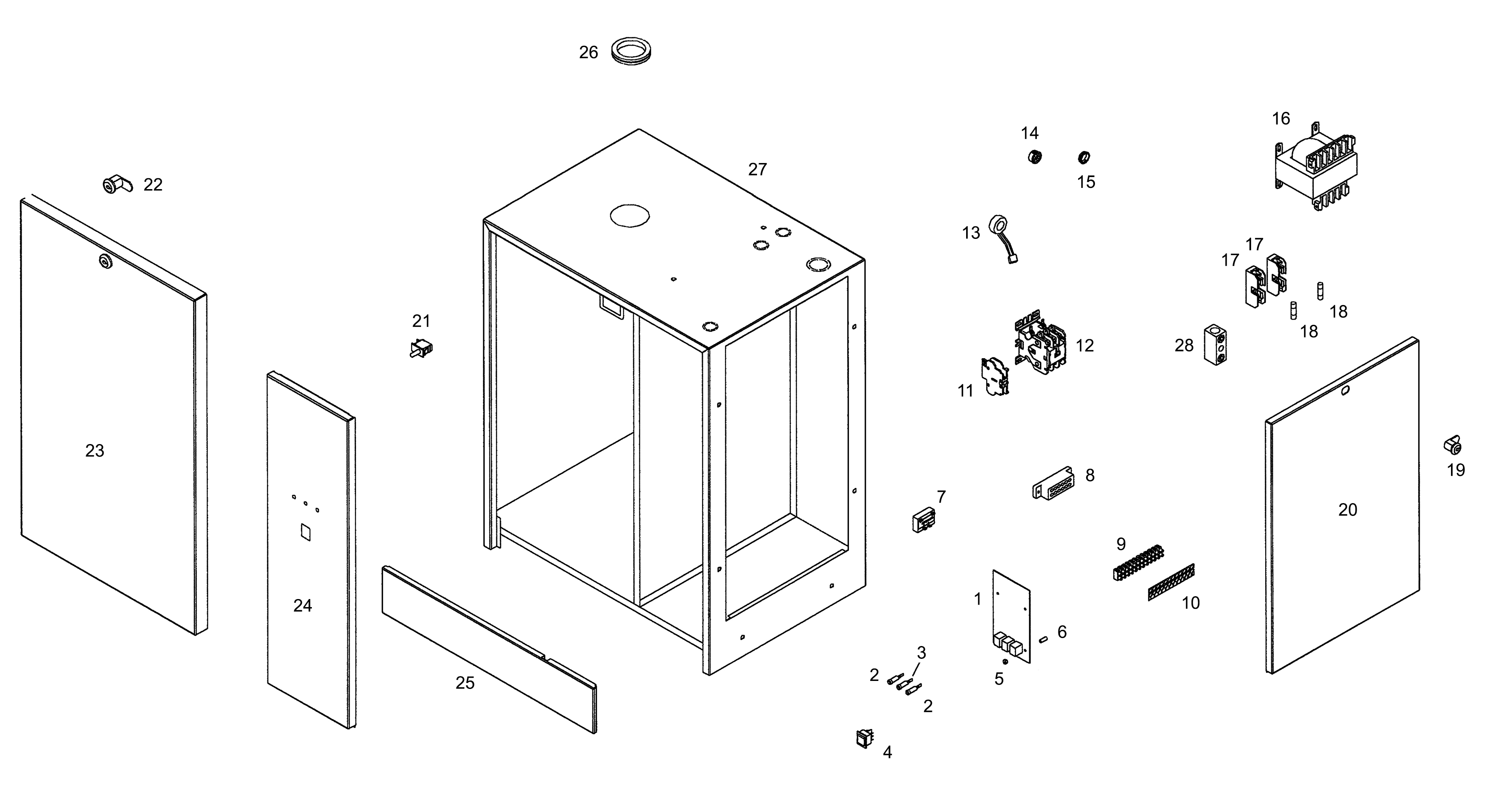

    Electrical

    Diagram

    Electrical
    2
    2
    3
    4
    5
    7
    8
    9
    10
    11
    12
    13
    14
    15
    16
    17
    17
    18
    18
    19
    20
    21
    22
    23
    24
    25
    26
    27

    Electrical

    1. 2
      Incandescent Green Lamp
      Incandescent Green Lamp
      SKU: TRNEST1142
      $36.00
    2. 3
      Red Lamp
      Red Lamp
      SKU: TRNEST1141
      $36.00
    3. 4
      On Off Drain Switch
      On Off Drain Switch
      SKU: TRNEST1143
      $40.50
    4. 5
      Kep Nut
      Kep Nut
      SKU: TRNEST1146
    5. 7
      Cylinder Full Interface
      $74.87
    6. 8
      Terminal Block
      Terminal Block
      SKU: TRNEST1123
      $32.40
    7. 9
      Terminal Strip
      Terminal Strip
      SKU: TRNEST1124
      $23.04
    8. 10
      Marking Strip
      Marking Strip
      SKU: TRNEST1125
    9. 11
      Solenoid Valve Kit
      Solenoid Valve Kit
      SKU: TRNEST1092
      $360.30
    10. 12
      3-Pole Contactor
      3-Pole Contactor
      SKU: TRNEST109
      $324.30
    11. 13
      Toroid Transformer
      Toroid Transformer
      SKU: TRNEST3201
    12. 14
      Bushing
      Bushing
      SKU: TRNEST1409
    13. 15
      Bushing
      Bushing
      SKU: TRNEST353
      $2.16
    14. 16
      Transformer
      Transformer
      SKU: TRN256229001
      $354.00
    15. 17
      High Voltage Fuse Holder
      High Voltage Fuse Holder
      SKU: TRNEST355A
      $28.80
    16. 18
      High Voltage Fuse
      High Voltage Fuse
      SKU: TRNEST354
      $44.56
    17. 19
      Cabinet Lock with Keys
      Cabinet Lock with Keys
      SKU: TRNEST1221
    18. 20
      Cabinet Panel
      Cabinet Panel
      SKU: TRN354190001
    19. 21
      Door Interlock
      Door Interlock
      SKU: TRN1845
      $28.49
    20. 22
      Cabinet Lock with Keys
      Cabinet Lock with Keys
      SKU: TRNEST1221
    21. 23
      Cabinet Panel
      Cabinet Panel
      SKU: TRN354190001
    22. 24
      Cabinet Panel
      Cabinet Panel
      SKU: TRN354561001
    23. 25
      Cabinet Panel
      Cabinet Panel
      SKU: TRN254319003
    24. 26
      Steam Hose Grommet
      Steam Hose Grommet
      SKU: TRNEST117
      $14.40
    25. 27
      Main Compound
      Main Compound
      SKU: TRN454194001

    Electrical Not In Diagram

    1. Not Shown
      3-Pole Contactor
      3-Pole Contactor
      SKU: TRNEST1093
      $541.20
    2. Not Shown
      Control Fuse
      Control Fuse
      SKU: TRNEST120
      $7.31
    3. Not Shown
      Power Distribution Block
      $109.50
    4. Not Shown
      Power Distribution Block
      $109.50
    5. Not Shown
      Ground Block
      Ground Block
      SKU: TRNEST238
      $14.40
    6. Not Shown
      Ground Block
      Ground Block
      SKU: TRNEST239
      $25.20
    7. Not Shown
      Cylinder Full Electrode Quick Connect
      $4.96
    8. Not Shown
      Steam Outlet Hole Plug
      Steam Outlet Hole Plug
      SKU: TRNEST1016
    9. Not Shown
      LCD Display
      LCD Display
      SKU: TRN265171001
      (Substitute part number)
      $242.88
    10. Not Shown
      Nylon Spacer
      Nylon Spacer
      SKU: TRNEST1127
    11. Not Shown
      Nylon Spacer
      Nylon Spacer
      SKU: TRNEST1136
    12. Not Shown
      Ribbon Cable Assembly
      Ribbon Cable Assembly
      SKU: TRNEST1168
      $44.56
    13. Not Shown
      Microprocessor Board
      Microprocessor Board
      SKU: TRNEST1250
      $1,675.08
    14. Not Shown
      Toroid Transformer
      Toroid Transformer
      SKU: TRN254554001
    15. Not Shown
      Fuse Holder
      Fuse Holder
      SKU: TRN141622
    16. Not Shown
      Nut
      Nut
      SKU: TRN121800001
